Professional CNC milling center 2030 SPECIAL

+5

+4

+3

+2

Professional CNC milling center 2030 SPECIAL

Main spindle

2.2 kW main spindle with liquid cooling and mechanical tool change

5.5 kw liquid cooled MTC (mechanical tool change) spindle (instead of 2.2kW spindle) (+1 650,00 €)

7.5 kW ATC spindle HITECO, ISO30, with 6-position linear tool change on machine side (instead of 2.2 kW spindle). (+8 164,00 €)

Table type

T-slotted table (slotted along the width of the machine)

The vacuum table is divided into six manually operated zones from the front of the machine (+4 233,00 €)

Vacuum pump

None

1 pcs. Becker or BUSH ~250m3/h. (recommended for tables up to 2x3m) (+6 047,00 €)

2 pcs. Becker or BUSH ~250m3/h (total 490m3/h) (recommended for tables from 2x3m) (+11 000,00 €)

3 pcs. Becker or BUSH ~250m3/h (total 730m3/h) (recommended for tables from 2x4m) (+16 000,00 €)

Safety system

Optical barriers (ensure safety around the machine CE) (+1 500,00 €)

Machine control system

NK105 - Required to use USB to upload programs to the machine

SIM CNC - PC+Monitor+Keyboard+Mouse+Windows+SIM CNC control software (+4 535,00 €)

BOEING CNC GRAF - PC+ Monitor + Keyboard + Mouse + Windows + "CNC Graf" (+4 535,00 €)

TPA CONTROL SYSTEM CAD/CAM + NESTING (+10 581,00 €)

V CARVE PRO (+500,00 €)

ASPIRE (+1 400,00 €)

Rotary axis

without

lathe chuck (tailstock) and rotary axis (mandatory SIM CNC control) (+4 837,00 €)

Oscillating cutting knife

without

pneumatic knife for cutting rubber, cardboard, etc. (mandatory SIM CNC or CNC GRAF) control) (+5 442,00 €)

folding wheel and pneumatic knife for cutting rubber, cardboard, etc. (mandatory SIM CNC or CNC GRAF control) (+6 942,00 €)

Positioning camera

without

Positioning camera (CNC GRAF control system is mandatory) (+4 230,00 €)

Cooling types

without

compressed air blower (+1 020,00 €)

Spray oil mist on the tool (+1 230,00 €)

Freezer air nozzle (for oil-sensitive materials) (+1 020,00 €)

In stock

Product Details

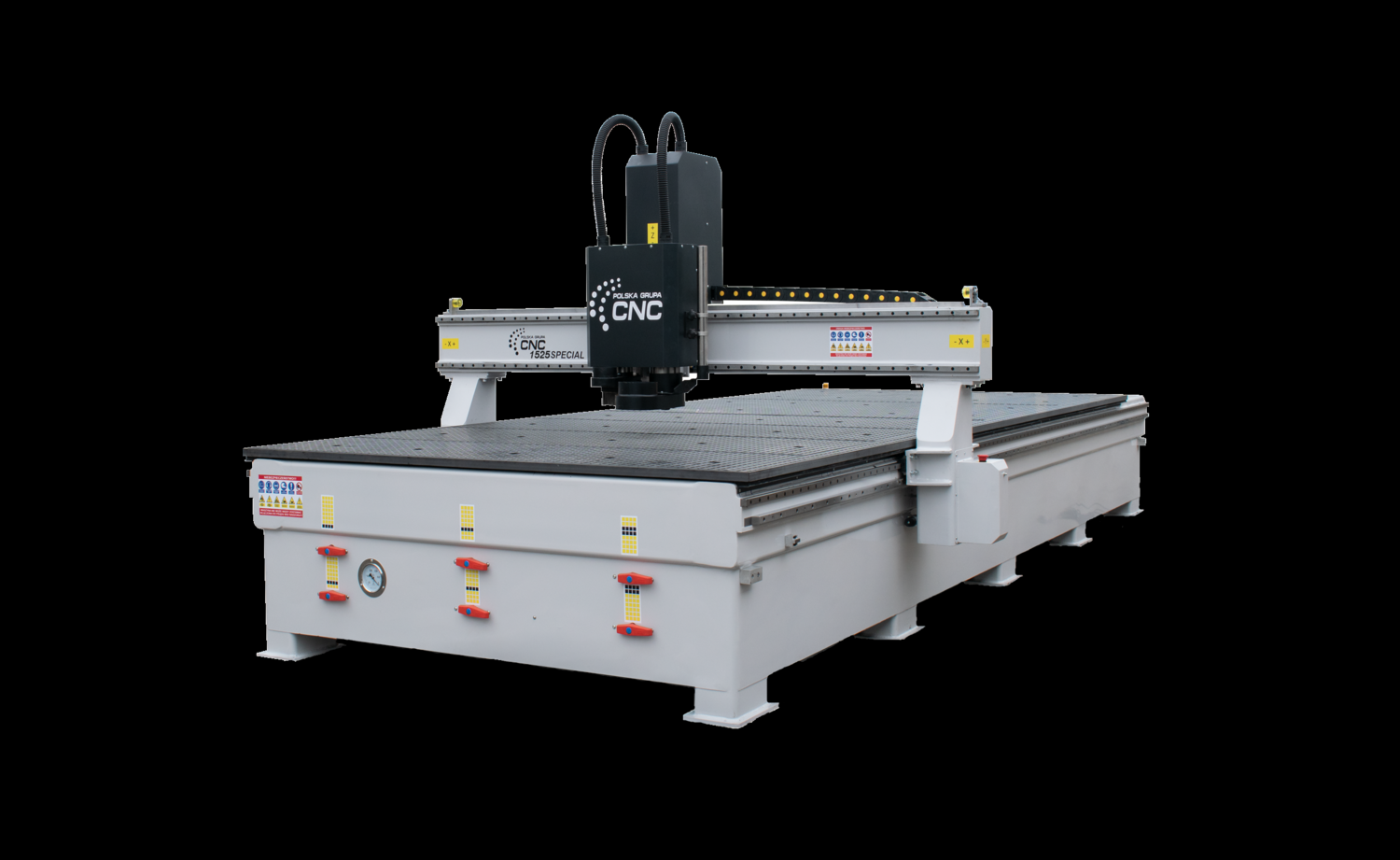

PROFESSIONAL CNC CENTER PGCNC 2030 SPECIAL

2100x3100x200mm

T-groove table

2.2 kW liquid cooled spindle (with chiller)

Axis speed 25 m/min

High performance servo motors

X 1 x 750 W

Y 2 x 750 W

Z 1 x 750 W

UCANCAM software included

NK105 G3 control system with remote controller

Delivery is not included.

+48 516 787 996 (WhatsApp, Viber)
