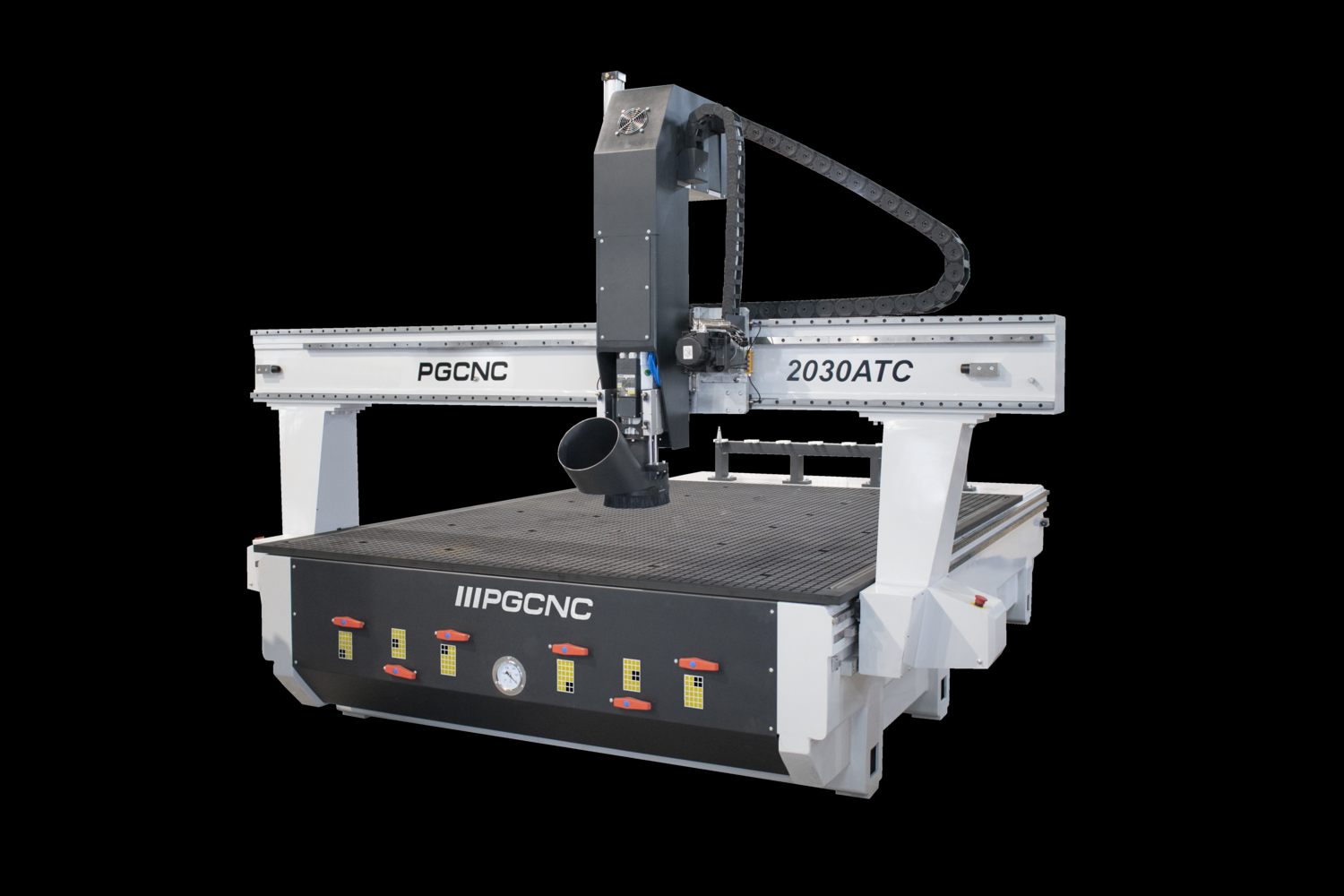

Industrial CNC center PGCNC 2030 ATC

Main spindle

7.5 kW ATC spindle HITECO, ISO30, with 6-position linear tool change on the end of the machine

9 kW ATC spindle HITECO, ISO30, with 6-position linear tool change on the end of the machine (+2 850,00 €)

HSK F63 9kW ATC spindle HITECO, with 6-position linear tool change on the end of the machine (+3 150,00 €)

Table type

T-slotted table (slotted along the width of the machine)

The vacuum table is divided into six manually operated zones from the front of the machine (+4 233,00 €)

Vacuum pump

without

1 pcs. Becker or BUSH ~250m3/h. (recommended for tables up to 2x3m) (+6 047,00 €)

2 pcs. Becker or BUSH ~250m3/h (total 490m3/h) (recommended for tables from 2x3m) (+11 000,00 €)

3 pcs. Becker or BUSH ~250m3/h (total 730m3/h) (recommended for tables from 2x4m) (+16 000,00 €)

Safety system

Optical barriers (ensure safety around the machine) (+1 500,00 €)

Machine control system

NK105 - Required to use USB to upload programs to the machine

SIM CNC - PC+Monitor+Keyboard+Mouse+Windows+SIM CNC control software (+4 535,00 €)

BOEING CNC GRAF - PC+ Monitor + Keyboard + Mouse + Windows + "CNC Graf" (+4 535,00 €)

TPA CONTROL SYSTEM (+10 581,00 €)

Oscillating cutting knife

none

pneumatic knife for cutting rubber, cardboard, etc. (mandatory SIM CNC or CNC GRAF control) (+5 442,00 €)

folding wheel and pneumatic knife for cutting rubber, cardboard, etc. (mandatory SIM CNC or CNC GRAF control) (+6 942,00 €)

Rotary axis

without

lathe chuck (tailstock) and rotary axis (mandatory SIM CNC control) (+4 837,00 €)

Positioning camera

without

Positioning camera (CNC GRAF control system is mandatory) (+4 230,00 €)

Cooling types

without

compressed air blower (+1 020,00 €)

spray oil mist on the tool (+1 230,00 €)

freezer air nozzle (for oil-sensitive materials) (+1 020,00 €)

C axis (4-th axis)

C-axis with interpolation for making pockets for locks (mandatory SIM CNC control) (+6 179,00 €)

Software

PGCUT - software for rectangular parts cutting (mainly for furniture) (+1 500,00 €)

FUSION360 annual license with training (+2 721,00 €)

FUSION360 posprocessor for PGCNC (+1 209,00 €)

In stock

Product Details

Industrial CNC center PGCNC 2030 ATC

2100x3100x300mm

T-slotted table

Hiteco ISO-30 7,5 kW with ceramic bearing milling work at 1000-24000 rpm

45 m/min axial speed

High performance servo motors per axis

X 1 x 1000 W

Y 2 x 1000 W

Z 1 x 1000 W

UCANCAM software included

Remote control NK105

Delivery and installation not included
